Product

NanoTS Co., Ltd.

Touch Controller Solution

Touch Controller Line-up

01
Small Size (~19″) & Button-Deck
02
Middle Size ( 19″ ~ 32″)
03
Large Size (40”~)

Touch Size : 3” ~ 75” (inch)
Touch Interface : USB / RS232 / I2C
Touch Point : 1 ~ 60 Points
Touch Function : Water/Palm/Object Rejection

Button Deck
Up to 32”
40~55”
65”

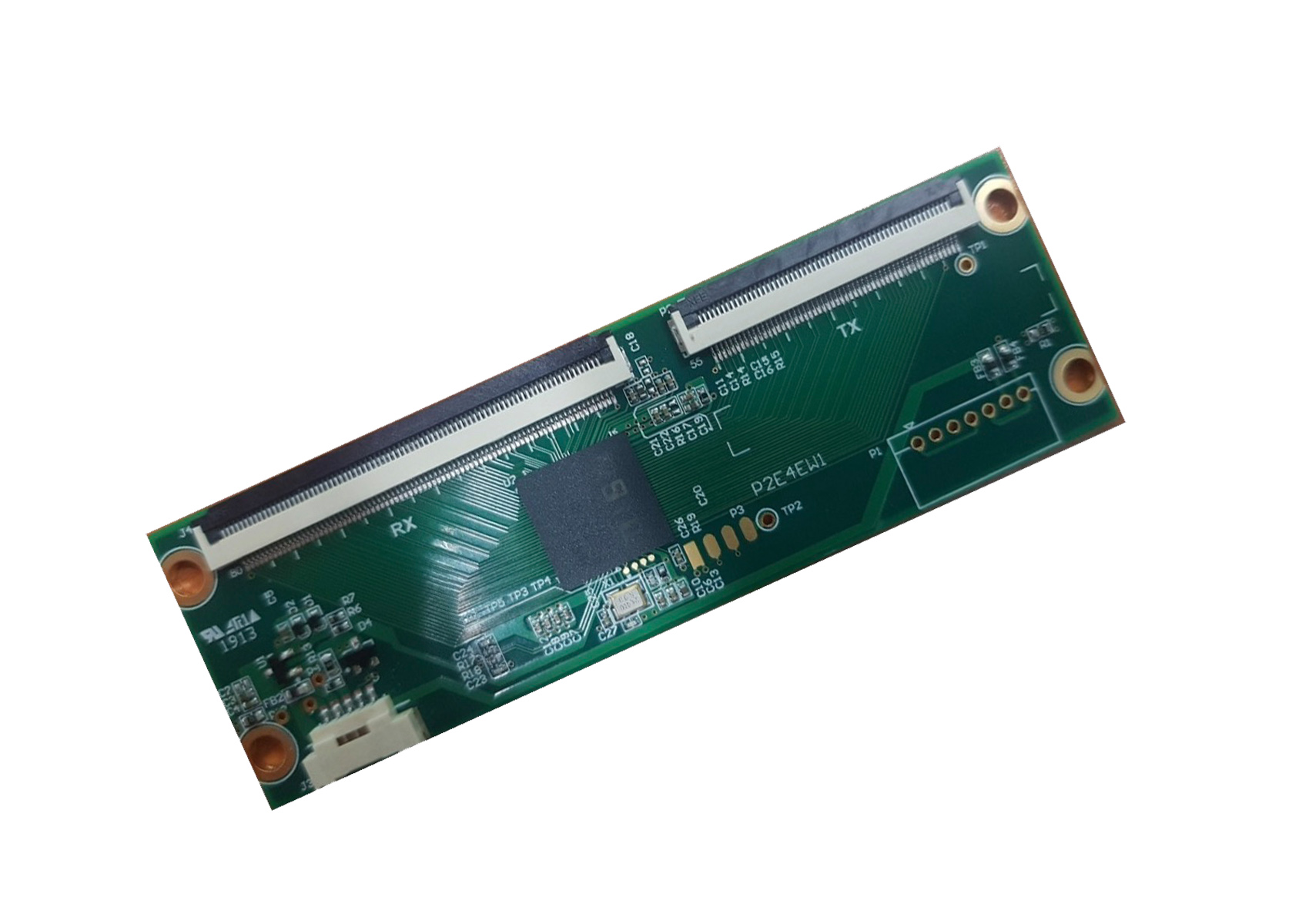

3.5” ~ 19”Controller

Group

Items

3.5 ~ 19”

No. of IC

1 Chip

필수

Max channels (Rx , Tx)

64 x 40

필수

Touch Point

10

Application

Resolution (ADC)

12 bits

필수

Touch Panel

Metal-Mesh, ITO, AG Nanowire, GG type, Etc.

필수

Interface / Driver

HID Standard, RS232, I2C / HID Driver ( Win 8, 10, Linux Compatiable )

Performance

Function

Palm, Water, Bottle, Object Rejection

필수

Features

Mouse, Digitizer, Special Protocol Support

필수

ESD

IEC 61000-4-2, Level 4, Up to 27 kV for Game Market

Reliability

Operating Temperature

0 ~ 85℃

3.5” ~ 19”Controller

Group

Items

3.5 ~ 19”

No. of IC

1 Chip

필수

Max channels (Rx , Tx)

64 x 40

필수

Touch Point

10

Application

Resolution (ADC)

12 bits

필수

Touch Panel

Metal-Mesh, ITO, AG Nanowire,
GG type, Etc.

필수

Interface / Driver

HID Standard, RS232, I2C / HID Driver
( Win 8, 10, Linux Compatiable )

Performance

Function

Palm, Water, Bottle,
Object Rejection

필수

Features

Mouse, Digitizer,
Special Protocol Support

필수

ESD

IEC 61000-4-2, Level 4,
Up to 27 kV for Game Market

Reliability

Operating Temperature

0 ~ 85℃

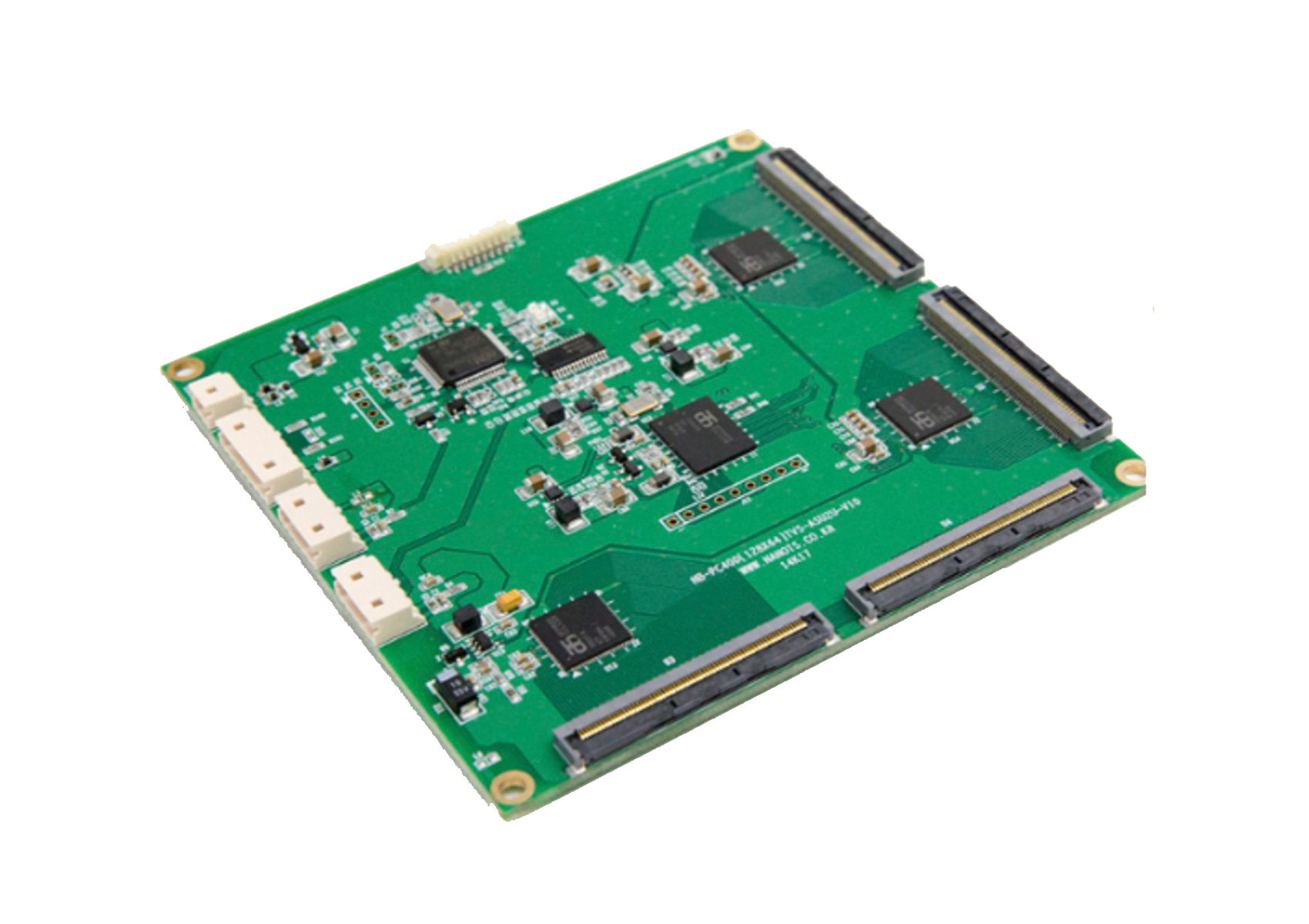

19” ~ 32”Controller

Group

Items

~ 32”

No. of IC

3 Chip

필수

Max channels (Rx , Tx)

112 x 64

필수

Touch Point

10

Application

Resolution (ADC)

12 bits

필수

Touch Panel

Metal-Mesh, ITO, AG Nanowire, GG type, Etc.

필수

Interface / Driver

HID Standard, RS232, I2C / HID Driver ( Win 8, 10, Linux Compatiable )

Performance

Function

Palm, Water, Bottle, Object Rejection

필수

Features

Mouse, Digitizer, Special Protocol Support

필수

ESD

IEC 61000-4-2, Level 4, Up to 27 kV for Game Market

Reliability

Operating Temperature

0 ~ 85℃

19” ~ 32”Controller

Group

Items

~ 32”

No. of IC

3 Chip

필수

Max channels (Rx , Tx)

112 x 64

필수

Touch Point

10

Application

Resolution (ADC)

12 bits

필수

Touch Panel

Metal-Mesh, ITO, AG Nanowire,
GG type, Etc.

필수

Interface / Driver

HID Standard, RS232, I2C / HID Driver
( Win 8, 10, Linux Compatiable )

Performance

Function

Palm, Water, Bottle,
Object Rejection

필수

Features

Mouse, Digitizer,
Special Protocol Support

필수

ESD

IEC 61000-4-2, Level 4,
Up to 27 kV for Game Market

Reliability

Operating Temperature

0 ~ 85℃

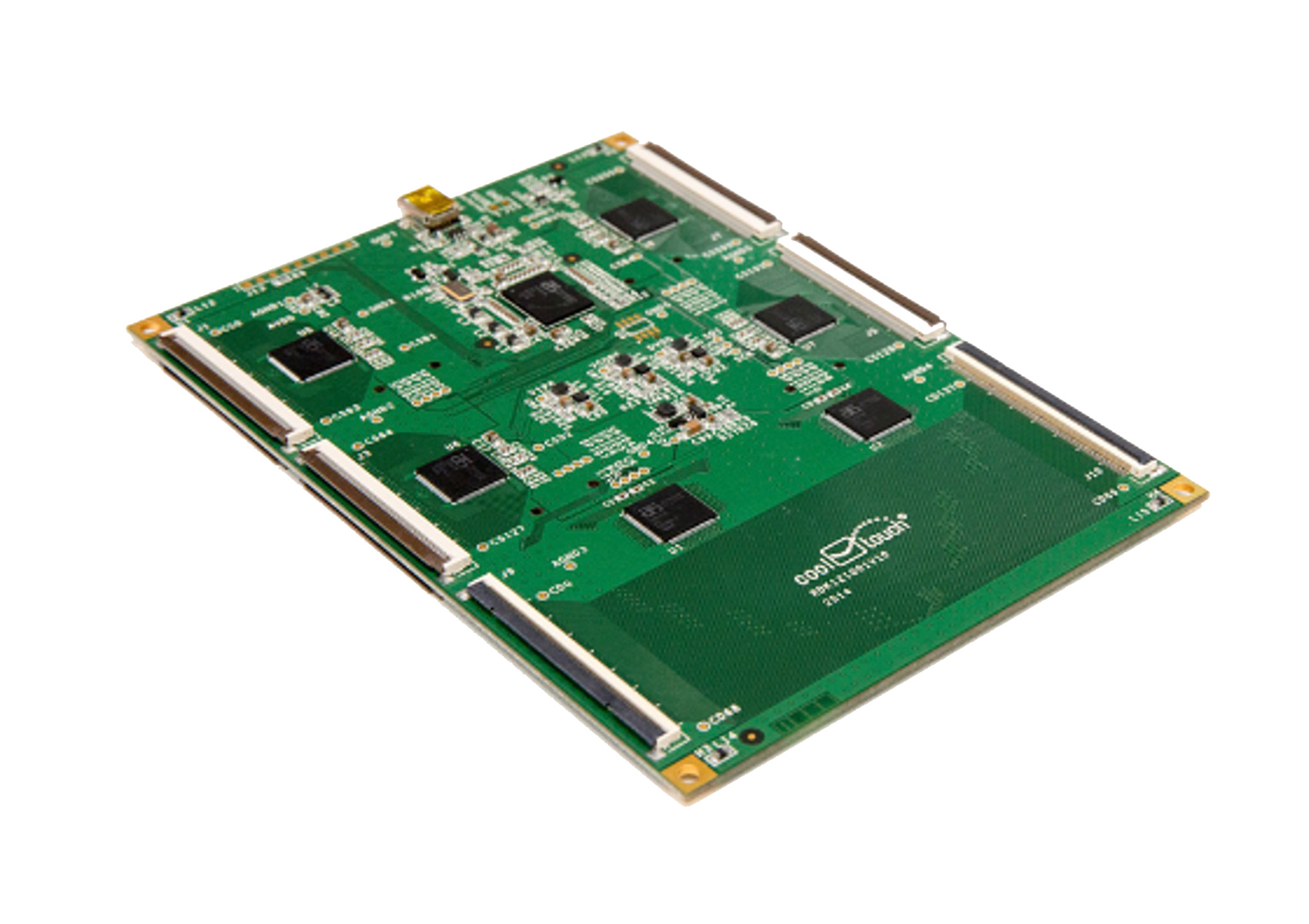

40” ~ 75”Controller

Group

Items

40” ~ 75”

No. of IC

4 Chipset

필수

Max channels (Rx , Tx)

128 x 80

필수

Touch Point

40

Application

Resolution (ADC)

12 bits

필수

Touch Panel

Metal-Mesh, ITO, AG Nanowire, GG type, Etc.

필수

Interface / Driver

HID Standard, RS232, I2C / HID Driver ( Win 8, 10, Linux Compatiable )

Performance

Function

Palm, Water, Bottle, Object Rejection

필수

Features

Mouse, Digitizer, Special Protocol Support

필수

ESD

IEC 61000-4-2, Level 4, Up to 27 kV for Game Market

Reliability

Operating Temperature

0 ~ 85℃

40” ~ 75”Controller

Group

Items

40” ~ 75”

No. of IC

4 Chipset

필수

Max channels (Rx , Tx)

128 x 80

필수

Touch Point

40

Application

Resolution (ADC)

12 bits

필수

Touch Panel

Metal-Mesh, ITO, AG Nanowire,
GG type, Etc.

필수

Interface / Driver

HID Standard, RS232, I2C / HID Driver
( Win 8, 10, Linux Compatiable )

Performance

Function

Palm, Water, Bottle,
Object Rejection

필수

Features

Mouse, Digitizer,
Special Protocol Support

필수

ESD

IEC 61000-4-2, Level 4,
Up to 27 kV for Game Market

Reliability

Operating Temperature

0 ~ 85℃
